H type layer chicken battery cage system

Full Data

LIVI Machinery specializes in the research and development of automated and intelligent poultry farming equipment, providing quality poultry farming equipment and comprehensive and efficient poultry breeding solutions for the global market. Our products cover layer chicken, broiler chicken, baby chick and breeders feeding equipment and other related poultry equipment, and have been exported to Southeast Asia, Africa, Central Asia and South America, etc.

Brief Details
Material	International Q235 steel.
Anti-corrosion treatment process	Hot-dip galvanized
Life Time	15 – 20 Years
Certificate	ISO9001, ISO14001, OHSAS18001, CE, SONCAP, PVOC
Production Lead Time	Depending on the order quantity. Normally about 10 days for 20ft container, 15 days for a 40ft container.
Supply Ability	10000 Set/Month
Packing Method	Normal export packing. 20ft / 40ft container.
Payment Method	T/T, L/C at sight
Trading Method	EXW, FOB, CFR, CIF

H type layer chicken battery cage specification
Type	Model	Birds Qty/Door	Birds Qty/Unit	Specification
H-Type	3-Tier 2-Door	9 pcs	108 pcs	1200mm*625mm*480mm
	4-Tier 2-Door	9 pcs	144 pcs	1200mm*625mm*480mm
	5-Tier 2-Door	9 pcs	180 pcs	1200mm*625mm*480mm
	6-Tier 2-Door	9 pcs	216 pcs	1200mm*625mm*480mm
	7-Tier 2-Door	9 pcs	252 pcs	1200mm*625mm*480mm
	8-Tier 2-Door	9 pcs	288 pcs	1200mm*625mm*480mm

Layer cage system:

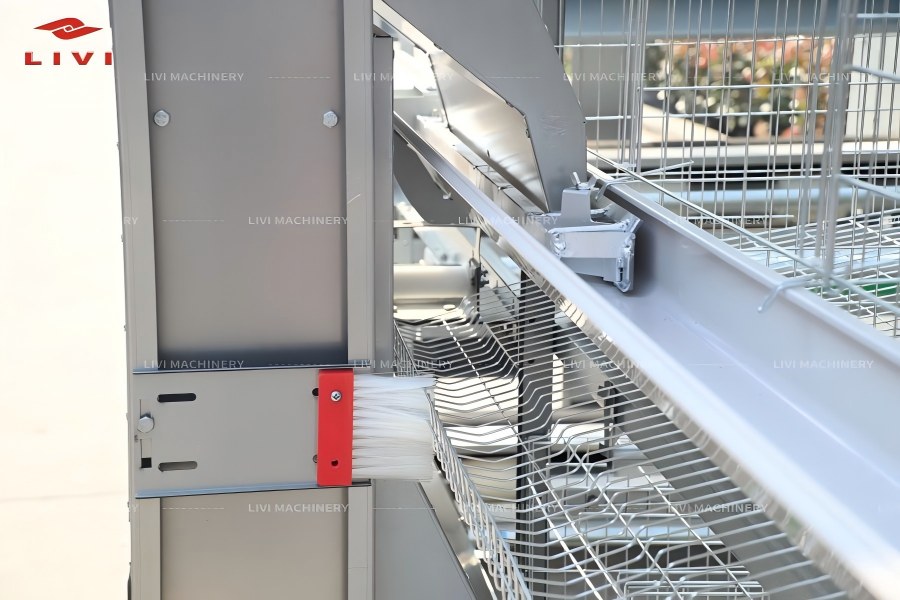

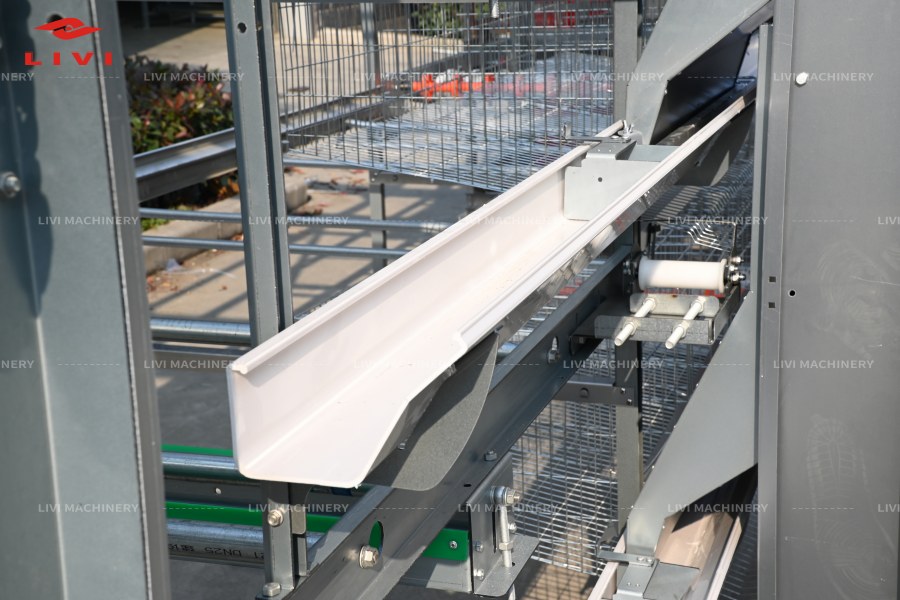

Automatic feeding system: The feeding process all the use of automated control, it can adjust the amount of materials. It prevents the waste of feed.

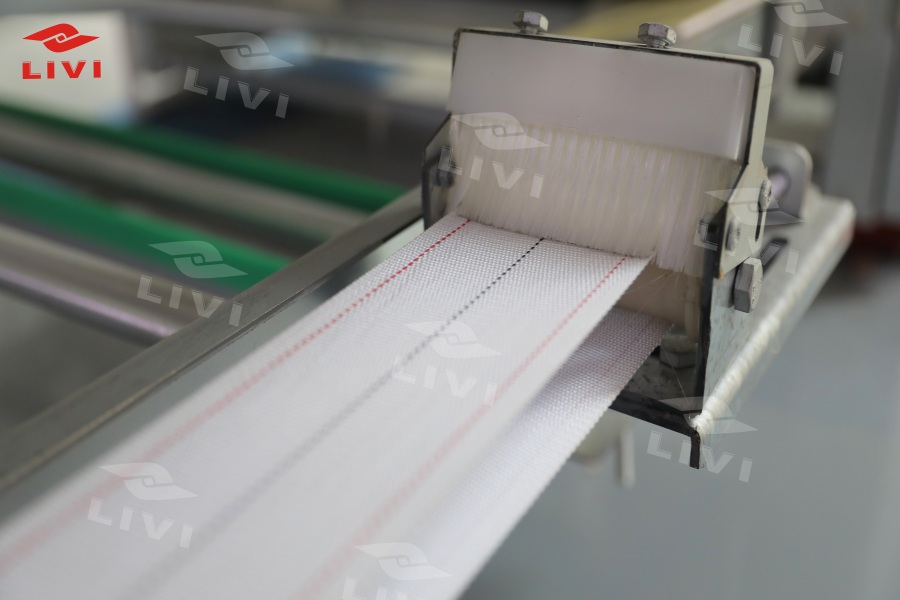

Automatic egg collecting system: Perfect roll out angle of the bottom mesh minimize the breakage. It has a powerful ability to collect eggs, collecting up to 20000 eggs per hour, collecting and conveying eggs between different chicken sheds.

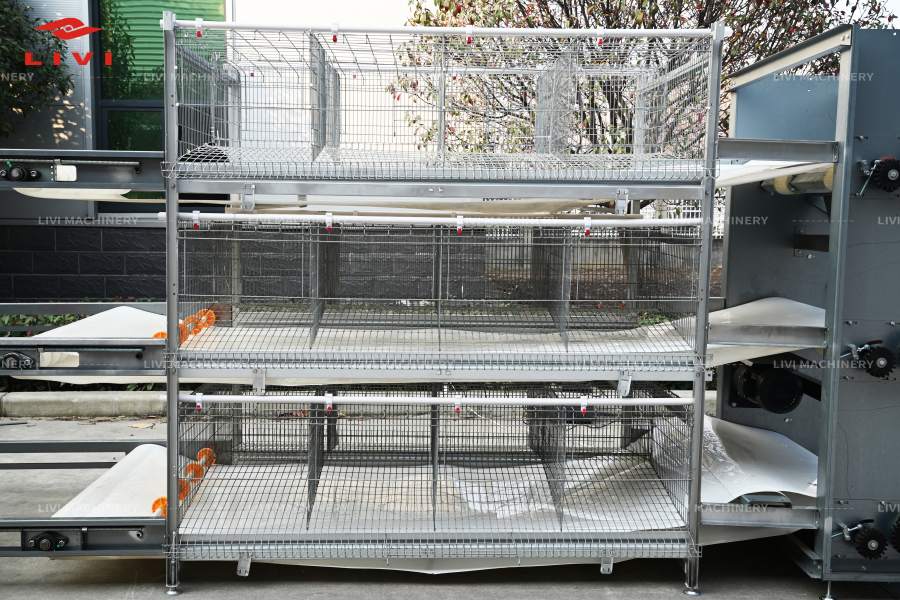

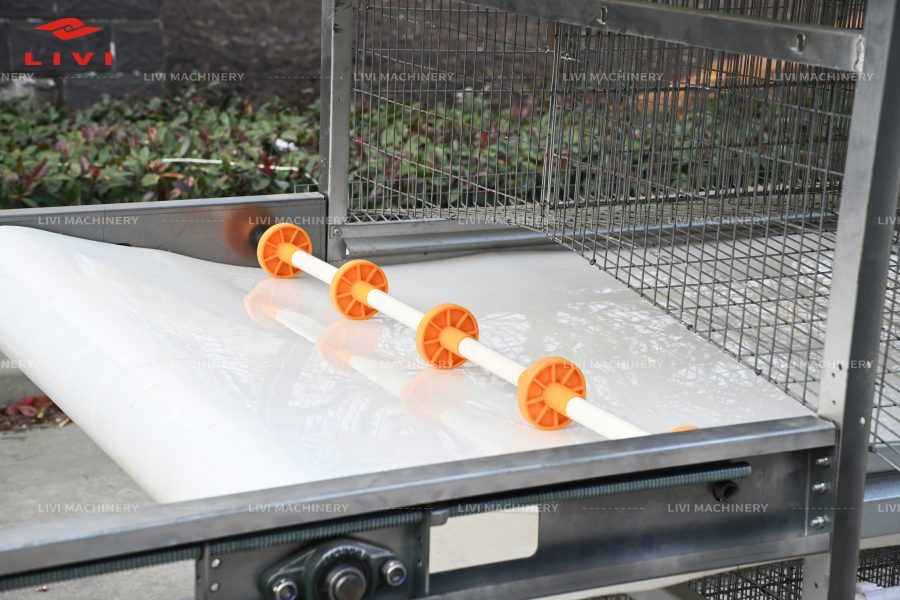

Automatic manure removing system: The conveyor belt type is suitable for both A-type cages and H-type cages, which can reduce the labor intensity and labor cost, keep the chicken shed dry and clean.

Features:

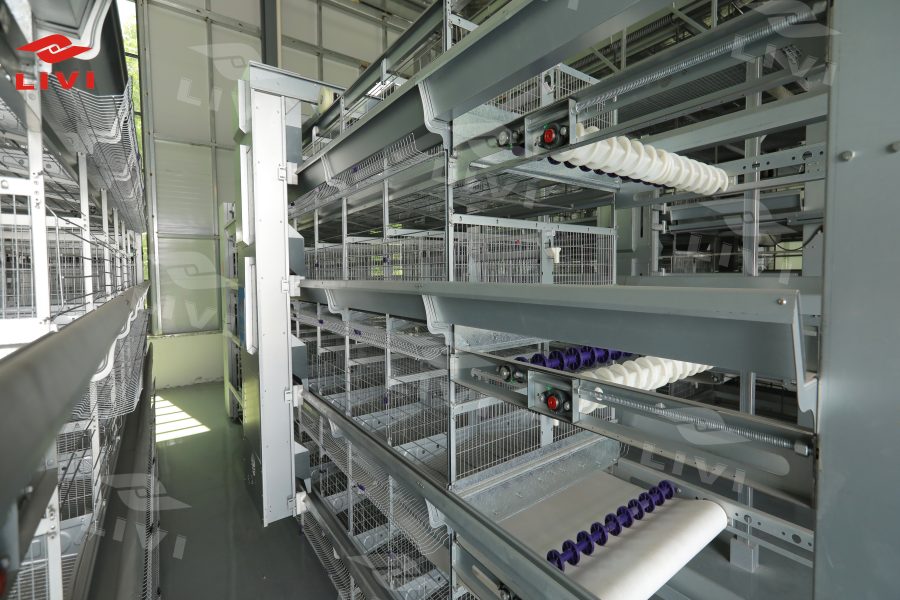

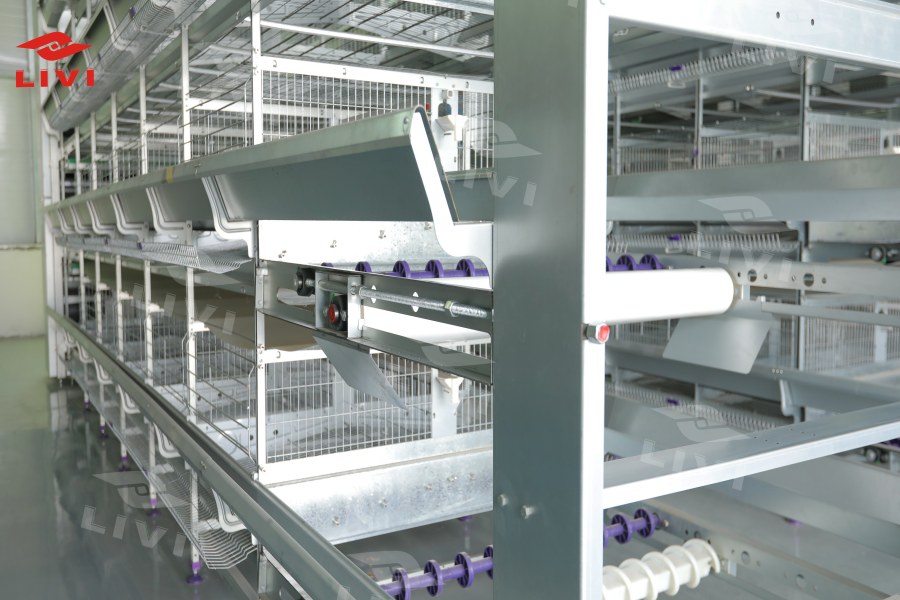

H type layer chicken battery cage system has the feature of high-automation, high-density, effectively save the land and labor cost, the separation of the chicken shed and people living zone avoids the disease spread, fully automatic manure removing system effectively decrease the environmental pollution, adding the intelligent environmental controling system, which is the best choice of the intensive & large scale poultry farm.

A type layer chicken battery cage system has the feature of simple structure, easy operation and maintenance, high option of the automatic equipment, lower input costs and reap fast, customer could choose the chicken cage only, cage with semi or high-automatic equipment according to your different requirement.
